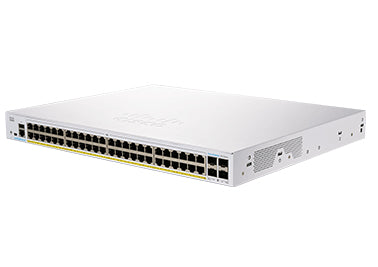

Cisco CBS350-48FP-4X-EU network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) SilverCBS350-48FP-4X
Cisco CBS350-48FP-4X-EU network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) SilverCBS350-48FP-4X
Regular price
£1,399.00 GBP
Regular price
Sale price
£1,399.00 GBP
Unit price
/
per
Description
The Cisco Business 350 Series Switches, part of the Cisco Business line of network solutions, is a portfolio of affordable managed switches that provides a critical building block for any small office network. Intuitive dashboard simplifies network setup, and advanced features accelerate digital transformation, while pervasive security protects business critical transactions. The Cisco Business 350 Series Switches provide the ideal combination of affordability and capabilities for small office and helps you create a more efficient, better-connected workforce. The Cisco Business 350 Series Switches is a family of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Gigabit Ethernet connectivity and Gigabit or 10-Gigabit uplinks, providing optimal flexibility to create exactly the right building block for small office networks. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco Business 350 Series Switches support the advanced security management capabilities and network features you need to support enterprise-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs. Cisco Business 350 Series Switches are available with up to 48 Power over Ethernet (PoE) ports. This capability simplifies advanced technology deployments such as IP telephony, wireless, and IP surveillance by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost. Models support 802.3af PoE and 802.3at PoE+. Networkwide Automatic Voice Deployment Using a combination of Cisco Discovery Protocol, Link Layer Discovery Protocol-Media Endpoint Discovery (LLDP-MED), Auto Smartports, and Voice Services Discovery Protocol (or VSDP, a unique Cisco protocol), customers can deploy an end-to-end voice network dynamically. The switches in the network automatically converge around a single voice Virtual Local Area Network (VLAN) and Quality of Service (QoS) parameters and then propagate them out to the phones on the ports, where they are discovered. For example, automated voice VLAN capabilities let you plug any IP phone (including third-party phones) into your IP telephony network and receive an immediate dial tone. The switch automatically configures the device with the right VLAN and QoS parameters to prioritize voice traffic. IPv6 Support As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco Business 350 Series Switches can support the transition to the next generation of networking. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future. Cisco Business 350 Series Switches have successfully completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification. Advanced Layer 3 Traffic Management The Cisco Business 350 Series Switches enable a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide static LAN Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance. With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security. Compact Design The sleek and compact design for the Cisco Business 350 Series Switches provide additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.
Specifications
Management features | |
---|---|
Reset button | Yes |
Multicast support | Yes |
ARP inspection | Yes |
Switch type | Managed |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
MIB support | Yes |
Switch layer | L2/L3 |
Configuring Location Settings (CLI) | Yes |
Cloud-managed | Yes |
Network | |
IGMP snooping | Yes |
Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad |
Head-of-line (HOL) blocking | Yes |
VLAN support | Yes |
Spanning tree protocol | Yes |
Port mirroring | Yes |
Number of VLANs | 4094 |
Link aggregation | Yes |
Flow control support | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Broadcast storm control | Yes |
Auto MDI/MDI-X | Yes |
10G support | Yes |
Virtual LAN features | |
VLAN support | Yes |
Number of VLANs | 4094 |
Data transmission | |
Number of VLANs | 4094 |
Jumbo frames | 9000 |
MAC address table | 16000 entries |
Jumbo frames support | Yes |
Technical details | |
Product colour | Silver |
Processor frequency | 800 MHz |
Firmware upgradeable | Yes |
Rack mounting | Yes |
Built-in processor | Yes |
Ports & interfaces | |
SFP+ module slots quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
USB 2.0 ports quantity | 1 |
Security | |
Access Control List (ACL) rules | 1024 |
SSH/SSL support | Yes |
Security algorithms | HTTPS, SSH, SSL/TLS |
MAC address filtering | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
Password protection | Yes |
DHCP features | DHCP relay, DHCP server, DHCPv6 client |
Multicast features | |
Multicast support | Yes |
Protocols | |
Management protocols | SNMP |
Memory | |
Internal memory | 512 MB |
Flash memory | 256 MB |
Design | |
Reset button | Yes |
Product colour | Silver |
LED indicators | Yes |
Rack mounting | Yes |
Performance | |
Processor frequency | 800 MHz |
Internal memory | 512 MB |
Flash memory | 256 MB |
Firmware upgradeable | Yes |
Built-in processor | Yes |
Harmonized System (HS) code | 85176990 |
Indication | |
LED indicators | Yes |
Power | |
Power supply included | Yes |
Operational conditions | |
Storage temperature (T-T) | -25 - 70 °C |
Storage relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | -5 - 50 °C |
Operating relative humidity (H-H) | 10 - 90% |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Other features | |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
