SRK Consultants LLC

CISCO C1000-16P-2G-L

CISCO C1000-16P-2G-L

Regular price £447.00 GBP
Regular price Sale price £447.00 GBP
Sale Sold out
Tax included.

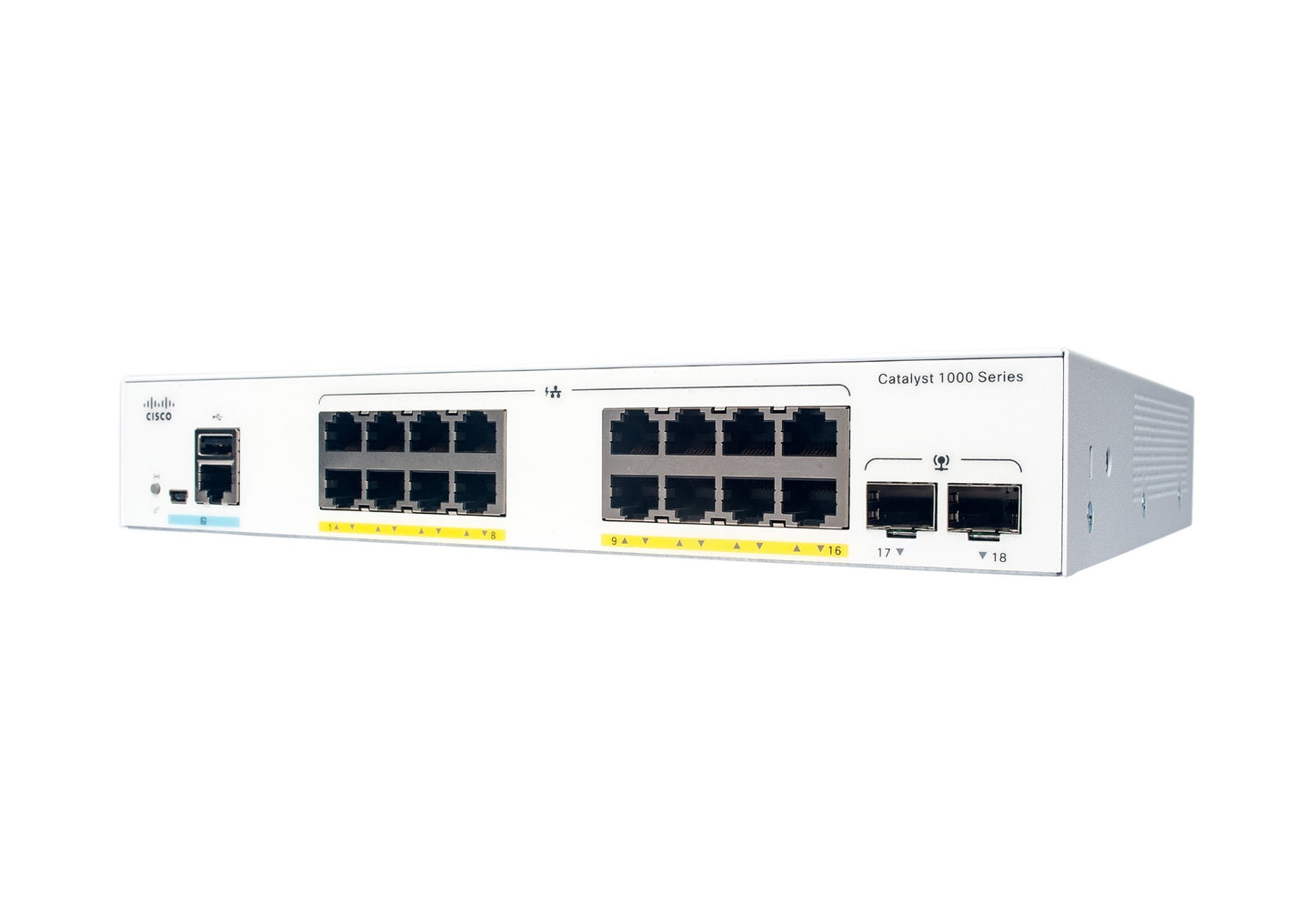

Cisco Catalyst 1000-16P-2G-L Network Switch, 16 Gigabit Ethernet (GbE) PoE+ Ports, 120W PoE Budget, two 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-16P-2G-L)

    Description

    The Cisco Catalyst 1000-16P-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.

    Specifications

    Management features
    Multicast support Yes
    Traffic classification Yes
    ARP inspection Yes
    Switch type Managed
    Web-based management Yes
    Quality of Service (QoS) support Yes
    MIB support Yes
    Switch layer L2
    Configuring Location Settings (CLI) Yes
    Network
    IGMP snooping Yes
    IPv6 multicast entries 1024
    IPv4 multicast entries 1024
    IGMP entries 1024
    Networking standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    VLAN support Yes
    Spanning tree protocol Yes
    Number of VLANs 256
    Link aggregation Yes
    Broadcast storm control Yes
    Auto MDI/MDI-X Yes
    Auto-negotiation Yes
    Virtual LAN features
    VLAN support Yes
    Number of VLANs 256
    Data transmission
    Number of VLANs 256
    Jumbo frames 10240
    Number of static routes 16
    MAC address table 16000 entries
    Switching capacity 36 Gbit/s
    Jumbo frames support Yes
    Static route Yes
    Forwarding rate 26.78 Mpps
    Performance
    Auto-negotiation Yes
    Processor frequency 800 MHz
    Memory type DRAM
    Mean time between failures (MTBF) 706983 h
    Internal memory 512 MB
    Flash memory 256 MB
    Built-in processor Yes
    Processor model ARM7
    Harmonized System (HS) code 85176990
    Technical details
    Product colour Grey
    Processor frequency 800 MHz
    Mean time between failures (MTBF) 706983 h
    Built-in processor Yes
    Products per shipping (inner) case 1 pc(s)
    Ports & interfaces
    SFP module slots quantity 2
    Basic switching RJ-45 Ethernet ports quantity 16
    Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
    USB 2.0 ports quantity 1
    Console port RJ-45/Mini-USB
    Security
    Loop protection Yes
    BPDU filtering/protection Yes
    Authentication Web-based authentication
    SSH/SSL support Yes
    IGMP snooping Yes
    Access Control List (ACL) Yes
    Authentication type RADIUS
    IGMP entries 1024
    DHCP features DHCP snooping
    Multicast features
    Multicast support Yes
    IPv6 multicast entries 1024
    IPv4 multicast entries 1024
    Memory
    Memory type DRAM
    Internal memory 512 MB
    Flash memory 256 MB
    Design
    Country of origin China
    Product colour Grey
    LED indicators Yes
    Market segment Business
    Indication
    LED indicators Yes
    Packaging content
    Packaging content C1000-16P-2G-L Switch, Accessory Kit, 1 printed document
    Power
    Power plug type Type C
    AC input voltage 110 - 220 V
    AC input frequency 50 - 60 Hz
    Power over Ethernet (PoE)
    Power over Ethernet plus (PoE+) ports quantity 16
    Total Power over Ethernet (PoE) budget 120 W
    Power over Ethernet (PoE) Yes
    Operational conditions
    Storage temperature (T-T) -25 - 70 °C
    Storage relative humidity (H-H) 5 - 95%
    Operating temperature (T-T) -5 - 50 °C
    Operating relative humidity (H-H) 5 - 90%
    Operating altitude 0 - 3000 m
    Non-operating altitude 0 - 4500 m
    Weight & dimensions
    Width 268 mm
    Depth 296.9 mm
    Height 44 mm
    Weight 2.38 kg
    Packaging data
    Package width 349.2 mm
    Package depth 387.4 mm
    Package height 160.3 mm
    Package weight 3.7 kg
    Logistics data
    Products per master (outer) case 1 pc(s)
    Harmonized System (HS) code 85176990
    Quantity per pack 1 pc(s)
    Other features
    Packaging content C1000-16P-2G-L Switch, Accessory Kit, 1 printed document
    Country of origin China
