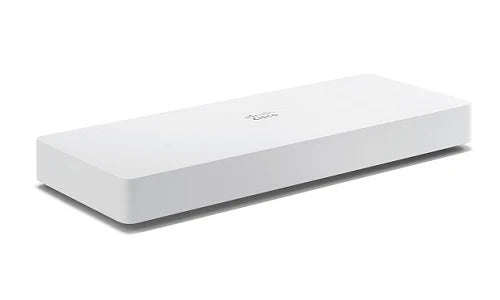

CISCO CS-CODEC-PLUS-K9

CISCO CS-CODEC-PLUS-K9

£6,250.00 GBP
£6,250.00 GBP
Sale Sold out
Tax included.

Cisco Webex is a powerful collaboration solution that integrates with flat-panel displays to bring more intelligence and usability to your medium to large-sized meeting rooms.



  • Product Description Cisco Webex Codec Plus - video conferencing device
    Device Type Video conferencing device
    VoIP Protocols H.323
    Codec H.264, G.711, G.722, G.729, G.722.1, AAC-LD, Opus
    Dimensions (WxDxH) 35.9 cm x 14.3 cm x 4.3 cm
    Weight 1.77 kg
    Digital Signaling Protocol H.323, SIP, H.460.18, H.460.19, BFCP
    Data Compression Protocol H.264
    Features DTMF decoding
    Networking Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
    Power AC 120/230 V (50/60 Hz)
    Manufacturer Warranty 90 days warranty
  • General
    Device Type Video conferencing device
    VoIP Protocols H.323
    Voice Codecs G.711, G.722, G.729, G.722.1, AAC-LD, Opus
    Video Codecs H.264
    Quality of Service IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p
    IP Address Assignment DHCP
    Security IEEE 802.1X, H.235 v3
    Network Protocols HTTP, DNS, HTTPS, NTP
    Width 35.9 cm
    Depth 14.3 cm
    Height 4.3 cm
    Weight 1.77 kg
    Modem
    Digital Signaling Protocol H.323, SIP, H.460.18, H.460.19, BFCP
    Data Compression Protocol H.264
    Features DTMF decoding
    Video Output
    Supported Display Graphics UHD (3840 x 2160)
    Digital Video Standard High-Definition Multimedia Interface (HDMI)
    Networking
    Connectivity Technology Wireless, wired
    Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
    Network / Transport Protocol NTP, DHCP, DNS
    Features DiffServ support, wall mountable, Quality of Service (QoS), SSH support, Audio Return Channel (ARC), 4K resolution support, security lock slot (cable lock sold separately), automatic gain control (AGC), 802.1x authentication, URI Dialing, administrator's password
    Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
    Expansion / Connectivity
    Interfaces 2 x display / video - HDMI input - 19 pin HDMI Type A
    1 x display / video - HDMI input - 19 pin HDMI Type A
    2 x display / video - HDMI output - 19 pin HDMI Type A
    1 x audio - output - mini-phone stereo 3.5 mm
    3 x audio - input - mini-phone 3.5 mm
    3 x network - RJ-45
    1 x USB 2.0
    1 x USB 2.0 - 5 pin Micro-USB Type B
    Miscellaneous
    Compliant Standards AES, RoHS, WEEE, CEC, Directive 2002/96/EC, Directive 2011/65/EU, FCC CFR47 Part 15 B Class A, Directive 2014/35/EU, Directive 2014/30/EU, Directive 2014/53/EU
    Power
    Power Device Power supply - external
    Voltage Required AC 120/230 V (50/60 Hz)
    Manufacturer Warranty
    Service & Support Limited warranty - 90 days
    Limited warranty - advance hardware replacement - 10 days
    Environmental Parameters
    Min Operating Temperature 0 °C
    Max Operating Temperature 35 °C
    Humidity Range Operating 10 - 90%
